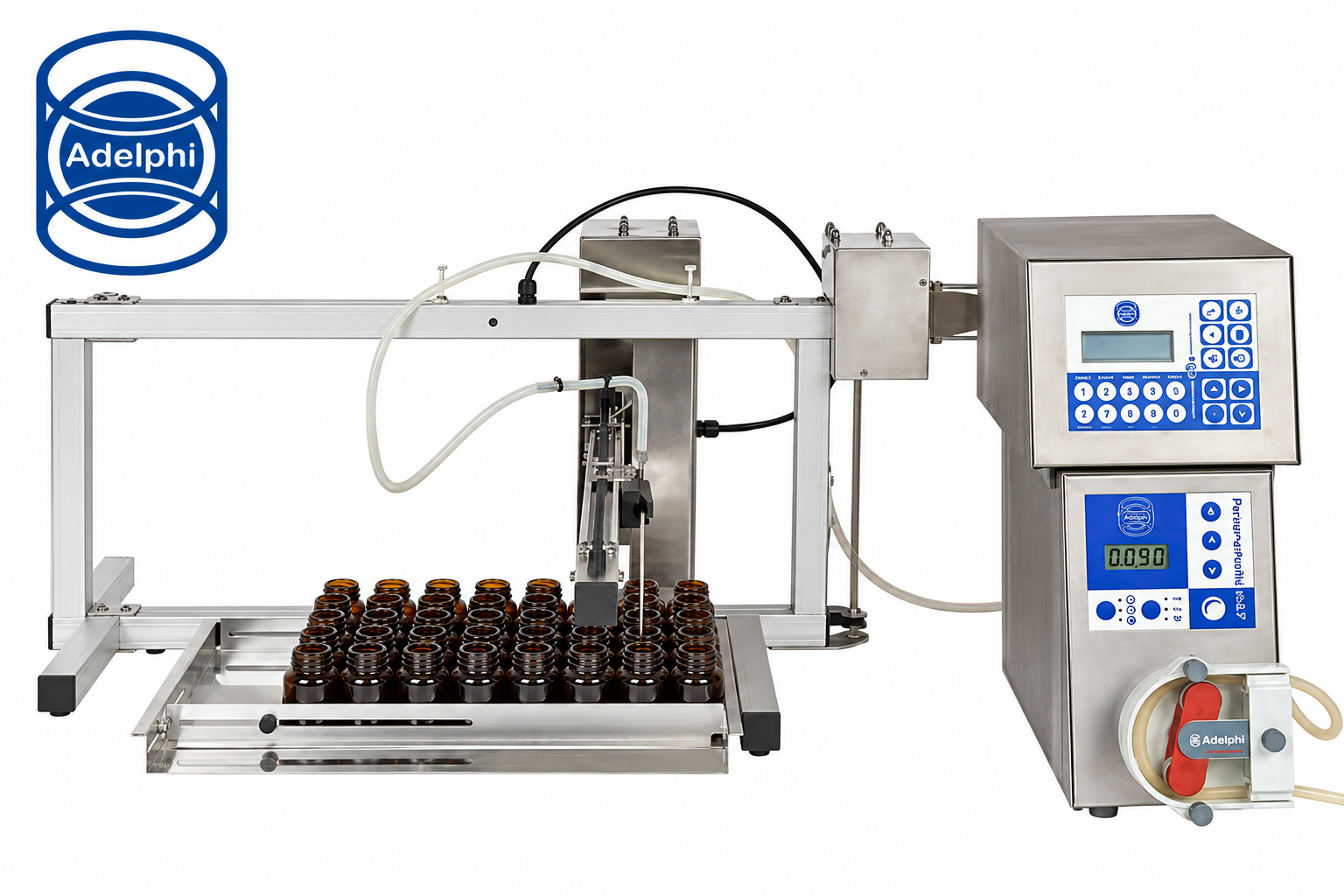

XYZ Distributor

Automatically fills bottles and vials in trays when paired with the Accuramatic Peristaltic Dispenser, using a Z‑axis diving nozzle for precise above- or in‑neck filling.

The XYZ Distributor is designed to be used in conjunction with the Accuramatic Peristaltic Dispenser and enables bottles and vials to be filled automatically in trays. The Z axis is the diving nozzle movement that allows liquid to be automatically filled from above the neck or into the neck.

  • Control box remote from moving nozzle frame suitable for use in laminar flow cabinet
  • Adjustable trays are supplied so that bottles are held in an orderly fashion
  • Setting up is easy using the menu-driven LCD displays
  • Special trays can be made to suit odd shaped bottles
  • Fills straight rows or honeycombed configurations

Specification
Electricity (selectable) 240 V AC, 50/60 Hz, 500 W (120 V optional)
Movement space (mm) X = 520, Y= 335, Z= 155
Electronics Mircoprocessor
Weight (kg) Control: 4.5. XYZ: 9.0
Dimensions distribution (mm) 790 × 625 × 390
Control dimensions (mm) 200 × 280 × 180
Drip delay 0.0 – 0.9 secs
Max vial height (mm) 200
Min neck opening (mm) 8
Tray fill area (mm) 410 × 265
